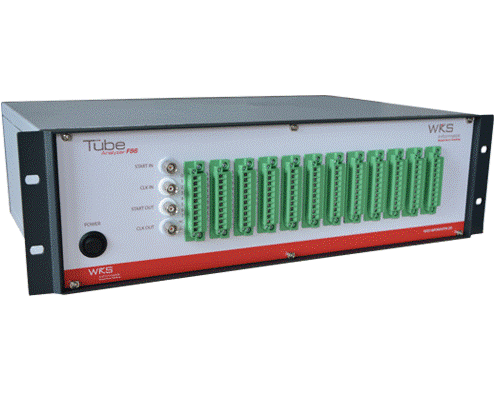

Tube Analyzer
Up to 96 voltages and current logging at 100kHz — time-synchronised across all channels. The measurement backbone of every RTStand system, and a powerful monitoring device for any LV124 / LV148 test setup.
96
voltage channels
±150A
current range
10µs
resolution
DAkkS
calibration
Full specifications
| Voltage channels | Up to 96 per device, ±60V range |
| Current channel | Up to ±150A |
| Additional current | Up to 12 extra channels via add-on module |
| Sampling rate | 100kHz per channel (10µs resolution) |
| Synchronisation | Time-synchronised across all channels and all devices |
| Scalability | Multiple Tube Analyzer units daisy-chained for higher channel count |
| Additional voltage add-on | Extra channels for external sensors and CAN bus line measurements |
| Data logging | TDMS format — compatible with NI DIAdem and custom analysis tools |
| Integration | Fully integrated in RTStand LV124 / LV148 |
| Calibration | DAkkS certified — highest German accreditation standard |
Key capabilities
- Monitors all power, current, and communication channels in parallel during LV124 / LV148 tests
- Detects sporadic ECU errors earlier in the development phase — visible in high-resolution, time-synchronised data
- Multiple units can be daisy-chained — scale to hundreds of channels without losing synchronisation
- Fully automated data acquisition when integrated in RTStand — no manual configuration between tests
This innovative modular concept, which gives us the opportunity to monitor a high number of pins in parallel, with a high resolution of up to 10us, as required in the LV124, allows us to make a deeper analysis of our products and especially find sporadic errors earlier in the development phase. –Ralf Zimmermann, Technical Project Lead – Continental™ AG

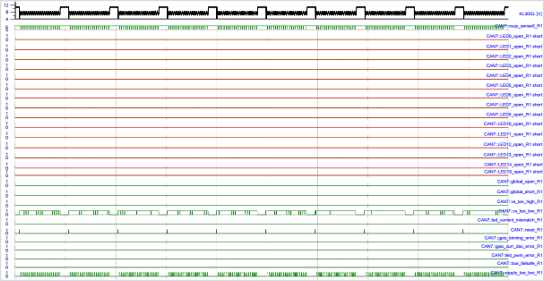

Tube Analyzer multi-channel monitoring
Need high-resolution monitoring for your test setup?
Tell us about your channel requirements and we will specify the right Tube Analyzer configuration integrated in RTStand.
