The devices behind innovative automotive electrical testing.
Three specialist devices for LV124 / LV148 — each solving a specific part of the test challenge. Fully integrated in the RTStand automated testing platform.
Deeper, faster, reproducible.

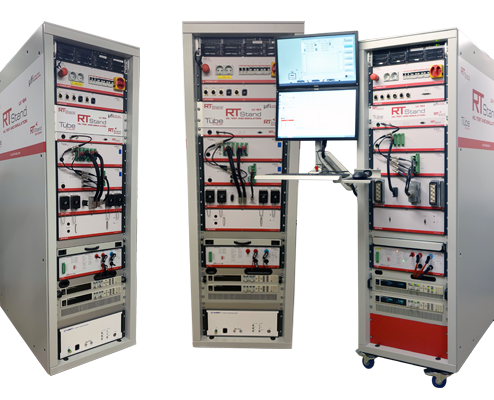

All three devices are integrated in the RTStand LV124 / LV148 fully automated testing platform. Learn about RTStand

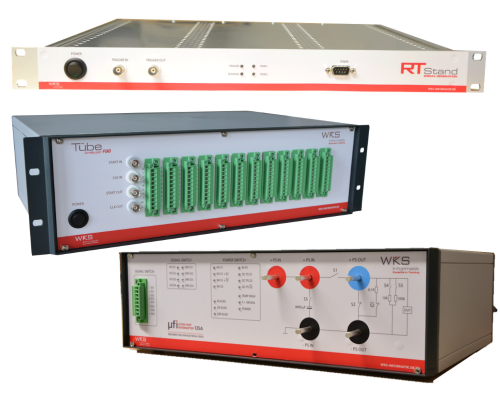

Three devices. Three problems solved.
Each device addresses a specific part of the LV124 / LV148 test workflow — signal generation, interruption testing, and monitoring.

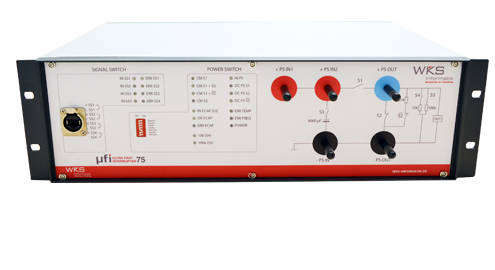

Ultra-fast Interrupter (UFI)
Short interruption testing for power lines up to 125A, CAN, LIN, Automotive Ethernet 1000base-T1, GMSL and more.
- Max current: 125A
- Bus lines: 4, e.g. CAN, LIN
- Ethernet: 100 / 1000base-T1
- GMSL: GMSL1
- 10G Ethernet & GMSL 2: New generation 2026

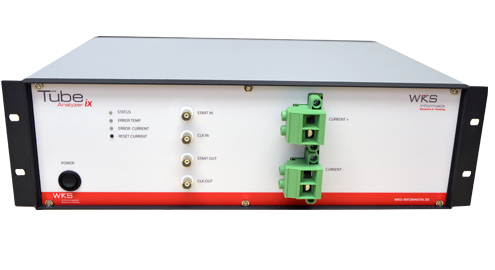

Tube Analyzer

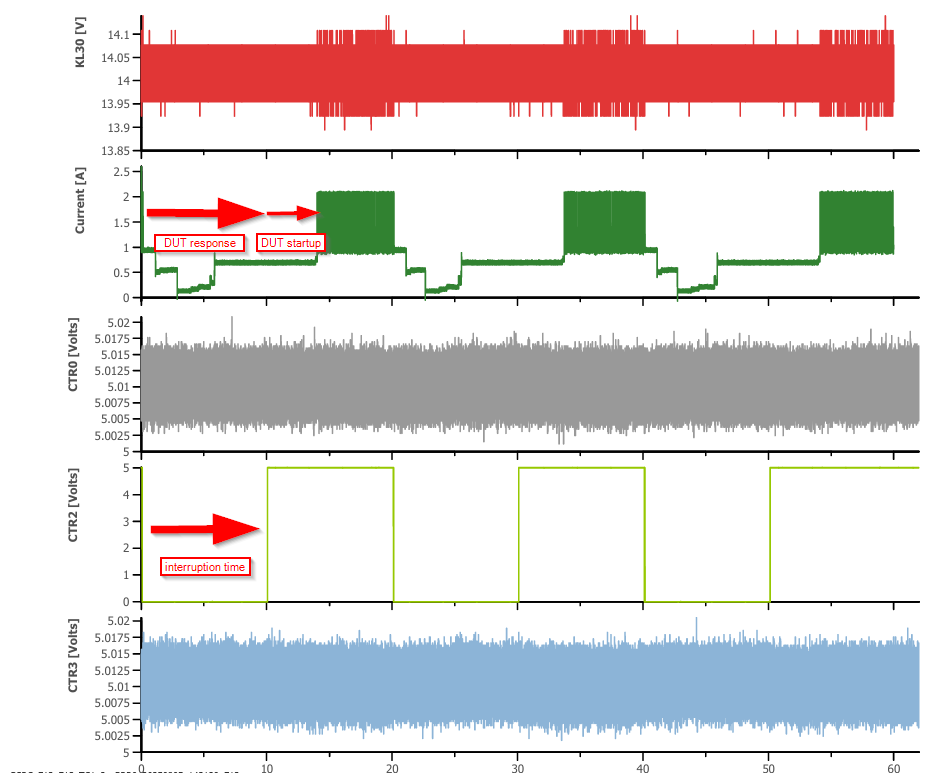

Up to 96-channel voltage and current logging at 100kHz — time-synchronised across all channels for precise ECU behaviour analysis.
- Voltage: Up to 96 ch, ±60V
- Current: Up to ±125A
- Resolution: 10µs (100kHz)
- Sync: Time-synchronised
- Scalable: Daisy-chain multiple units

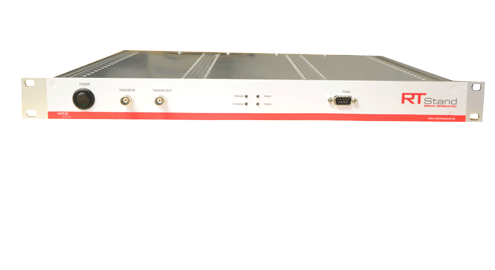

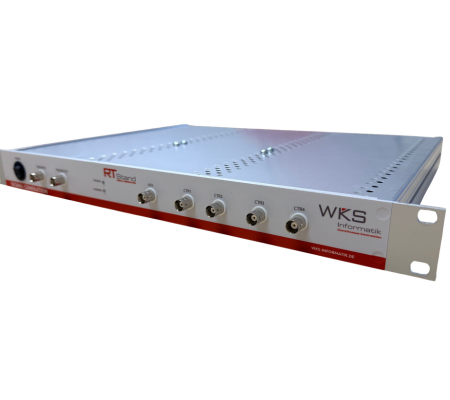

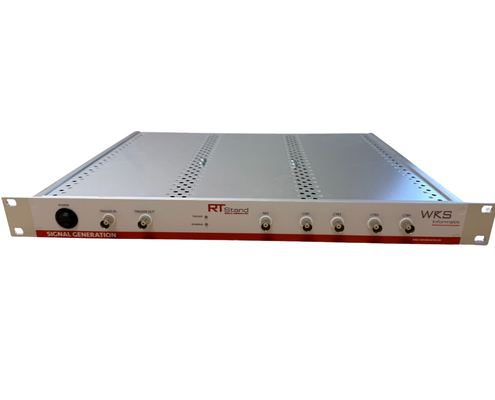

RTStand SignalGeneration
Arbitrary waveform and interruption profile generation with 45+ norm library for LV124 / LV148 power supply pulse profiles.
- Norm library: 45+ norms
- Waveforms: DC, sine, ramp, chirp + more
- UFI control: Integrated
- Import/Export: Excel profiles
- Networks: 12V, 24V, 48V
Continuous innovation.
UFI — New hardware
10G Ethernet and GMSL2 support
New generation UFI adds support for 10G Ethernet and GMSL2 interruption testing — ready for next-generation vehicle architectures.
SignalGeneration — Software
Feedback measurements and multi-amplifier support
Software upgrade adds feedback measurements during interruption and short-circuit tests, plus support for multiple amplifier devices simultaneously.
SignalGeneration — Hardware
External UFI control expansion
Hardware upgrade enables external control of additional UFI devices — expanding interruption testing capacity for complex multi-interface ECUs.
Not sure which device you need?
Tell us about your ECU and your current test setup. We will recommend the right setup — or explain when the full RTStand platform makes more sense than individual components.
